Checked Finish Cold Rolled SUS 316 Stainless Steel Diamond Plate Sheet

Place of Origin China
Brand Name Lichuang
Certification ISO9001, SGS, RoHS
Model Number 316
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details Standard seaworthy package
Delivery Time 7-10 days
Payment Terms L/C, T/T, Western Union
Supply Ability 50000 tons per year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade 316L Surface Checkered
Length 1m-6m Width 50-200mm Or As Required
Thickness 0.3-3.0 Mm Elongation(%) ≥40
Highlight

SUS 316 Stainless Steel Diamond Plate

,

Checked Finish Steel Sheet

,

SUS 316 Stainless Steel Diamond Plate

Leave a Message
Product Description

Checked Finish Cold Rolled SUS 316 Stainless Steel Diamond Plate /Sheet Standard Size Or Custom-Made



The stainless steel checkered sheet/ plate is embossed on the stainless steel plate by mechanical equipment, so that the surface of the plate has a concave and convex pattern.



Brand name Lichuang
Supply ability 50000 tons per year
Certification SGS, ISO
Delivery time 3~10 days
Manufacturing products mainly supply customer with stainless steel series products such as stainless steel sheet, stainless steel pipe, stainless steel profiles etc, also provide galvanized steel series products and carbon steel products etc for customers
Price term CIF CFR FOB EXW
Payment term T/T terms, 30% pre-payment, 70% balance see B/L copy;
Stock available stock goods with standard size
Standard  Aisi ASTM
MOQ 1 ton
Type Sheet/Plate/Coil/Pipe
Technique cold rolled / hot rolled
Grade 201 202 304 304J1 304L 321 316 316L 309S 310S 409L 410 420J1 420J2 430 444 etc
Surface finish 2B/No.4 brushed/8K/BA mirror finish/checkered plate etc can be manufactured according to customer needs
Size for one sheet W1000mm*L2000mm(3.2*6.5ft);
W1219mm*L2438mm(4*8ft);
W1500mm*L3000mm(5*10ft)
under cold rolled condition, 0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0 thickness, 4-6mm also be available. Other size can be cut according to customer requirements

W1250mm*L3000mm(4.1*10ft);
W1250mm*L6000mm(4.1*19.6ft);
W1500mm*L3000mm(5*10ft);
W1500mm*L6000mm(5*19.6ft);
W1800mm*L6000mm(5.9*19.6ft);
under hot rolled treatment, 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0 thickness. 18-150mm also be available. Other size can be cut according to customer requirements



Chemical Composition



Grade C Si Mn P Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 3.5-5.5 16.0-18.0 -
202 ≤0.15 ≤1.0 7.5-10.0 ≤0.06 4.-6.0 17.0-19.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 6.0-8.0 16.0-18.0 -
302 ≤0.15 ≤1.0 ≤2.0 ≤0.035 8.0-10.0 17.0-19.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 19.0-22.0 24.0-26.0 -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 16.0-18.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 17.0-19.0 -
630 ≤0.07 ≤1.0 ≤1.0 ≤0.035 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 6.50-7.75 16.0-18.0 -
904L ≤2.0 ≤0.045 ≤1.0 ≤0.035 23.0-28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.80 ≤1.2 ≤0.035 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 0.19-0.22 0.24-0.26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 - 11.5-13.5 -
430 ≤0.12 ≤0.75 ≤1.0 ≤0.040 ≤0.60 16.0-18.0 -



Physical Properties



Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elogation(%) Hardness (HRB)
201 ≥655 ≥310 ≥40 ≤100
202 ≥620 ≥260 ≥40 ≤100
304 ≥515 ≥205 ≥40 ≤92
304L ≥485 ≥170 ≥40 ≤88
316 ≥515 ≥205 ≥40 ≤95
316L ≥485 ≥170 ≥40 ≤95
321 ≥515 ≥205 ≥40 ≤95
409 ≥380 ≥205 ≥20 ≤80
409L ≥350 ≥185 ≥22 ≤80
430 ≥450 ≥205 ≥22 ≤80



Standard Size



Thickness Width * Length Thickness Width * Length
0.3mm 1000mm*2000mm 1220mm*2440mm 1220mm*3048mm 1500mm*3000mm 4mm 1500mm*6000mm 1800mm*6000mm 2000mm*6000mm 2200mm*6000mm
0.4mm 5mm
0.5mm 6mm
0.6mm 8mm
0.7mm 9mm
0.8mm 10mm
0.9mm 15mm
1mm 20mm
1.2mm 25mm
1.5mm 30mm
2mm 35mm
2.5mm 40mm
3mm 45mm
We Can Customize Any Size, Please Contact US.



Product Photo

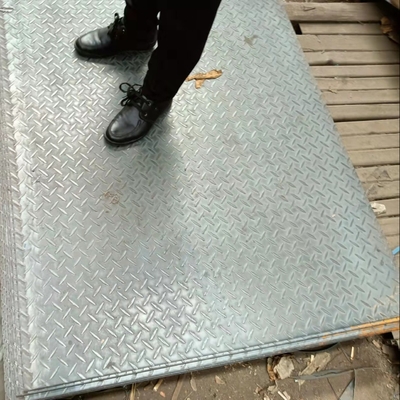

Checked Finish Cold Rolled SUS 316  Stainless Steel Diamond Plate Sheet 0



Surface Finish

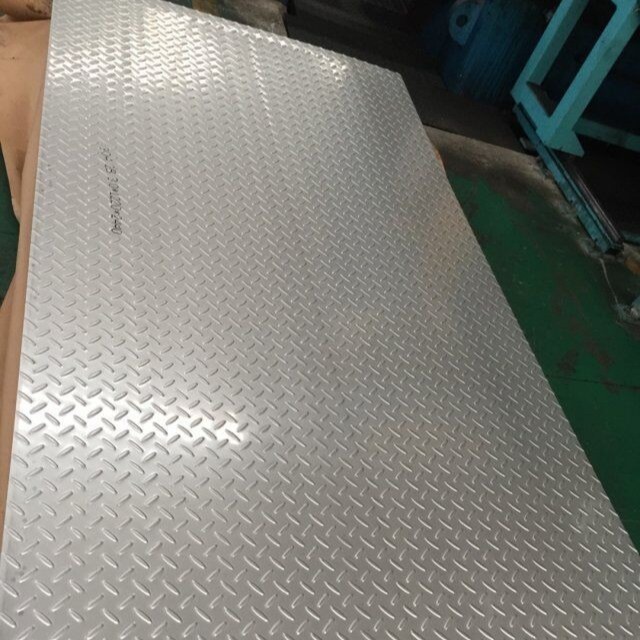

Checked Finish Cold Rolled SUS 316  Stainless Steel Diamond Plate Sheet 1





Packing & Shipping

Checked Finish Cold Rolled SUS 316  Stainless Steel Diamond Plate Sheet 2

Our Factory



Checked Finish Cold Rolled SUS 316  Stainless Steel Diamond Plate Sheet 3



FAQ



Q1: ARE YOU FACTORY OR TRADER?
A1: Lichuang Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
