304L Square Rectangle Stainless Steel Plate Sheet For Chemical Construction

Place of Origin China
Brand Name Lichuang
Certification ISO9001 BV CE IBR
Model Number 304L
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details Standard Waterproof Package
Delivery Time 7-10 Days After Confirming Order
Payment Terms L/C, T/T
Supply Ability 500 TONS PER MONTH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Price Term LC,T/T Grade 304L
Length 100-6000mm Certificate ISO, SGS
Width 100-2000mm Or As Required Surface Treatment NO.1
High Light

304L stainless steel rectangular plate

,

Stainless Steel Square Sheet Chemical

,

stainless steel rectangular plate Construction

Leave a Message
Product Description

304L Square Rectangle Stainless Steel Plate / Sheet For Chemical, Construction



As a low-carbon 304 steel, its corrosion resistance is similar to that of 304 steel under normal conditions, but after welding or after stress relief, its resistance to grain boundary corrosion is excellent; it can also remain good without heat treatment. High corrosion resistance, operating temperature -196℃~800℃.



Product name 304l Stainless Steel Sheet
Place of Origin China
Type Plate/ Sheet/Coil
Mainly Grade 304l
Technique Hot Rolled
Materials 300 Series
Standard ASME, ASTM, EN ,BS,GB,DIN, JIS etc.
Certification BV, ISO, CE, SGS, etc.
Surface treatment NO.1,2D,
Width 100-2000mm or as required
Thickness Hot Rolled:3~100 mm  or customized
Length 100-6000mm
Regular size  1219*2438mm,1219*3048mm,1219*4000mm
Processing Service Bending, Welding, Decoiling, Punching,Cutting:Laser cutting, help the customer to cut the required size
Tolerance ±1%
Delivery Time within 7 days after deposit
Applications Construction
MOQ 1 Ton
Sample We can provide it for free but not including sea freight
Payment terms 30%T/T,L/C
Price Term FOB, CFR, CIF, EXW



Chemical Composition



Grade C Si Mn P Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 3.5-5.5 16.0-18.0 -
202 ≤0.15 ≤1.0 7.5-10.0 ≤0.06 4.-6.0 17.0-19.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 6.0-8.0 16.0-18.0 -
302 ≤0.15 ≤1.0 ≤2.0 ≤0.035 8.0-10.0 17.0-19.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 19.0-22.0 24.0-26.0 -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 16.0-18.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 17.0-19.0 -
630 ≤0.07 ≤1.0 ≤1.0 ≤0.035 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 6.50-7.75 16.0-18.0 -
904L ≤2.0 ≤0.045 ≤1.0 ≤0.035 23.0-28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.80 ≤1.2 ≤0.035 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 0.19-0.22 0.24-0.26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 - 11.5-13.5 -
430 ≤0.12 ≤0.75 ≤1.0 ≤0.040 ≤0.60 16.0-18.0 -



Physical Properties



Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elogation(%) Hardness (HRB)
201 ≥655 ≥310 ≥40 ≤100
202 ≥620 ≥260 ≥40 ≤100
304 ≥515 ≥205 ≥40 ≤92
304L ≥485 ≥170 ≥40 ≤88
316 ≥515 ≥205 ≥40 ≤95
316L ≥485 ≥170 ≥40 ≤95
321 ≥515 ≥205 ≥40 ≤95
409 ≥380 ≥205 ≥20 ≤80
409L ≥350 ≥185 ≥22 ≤80
430 ≥450 ≥205 ≥22 ≤80

Detailed Photo

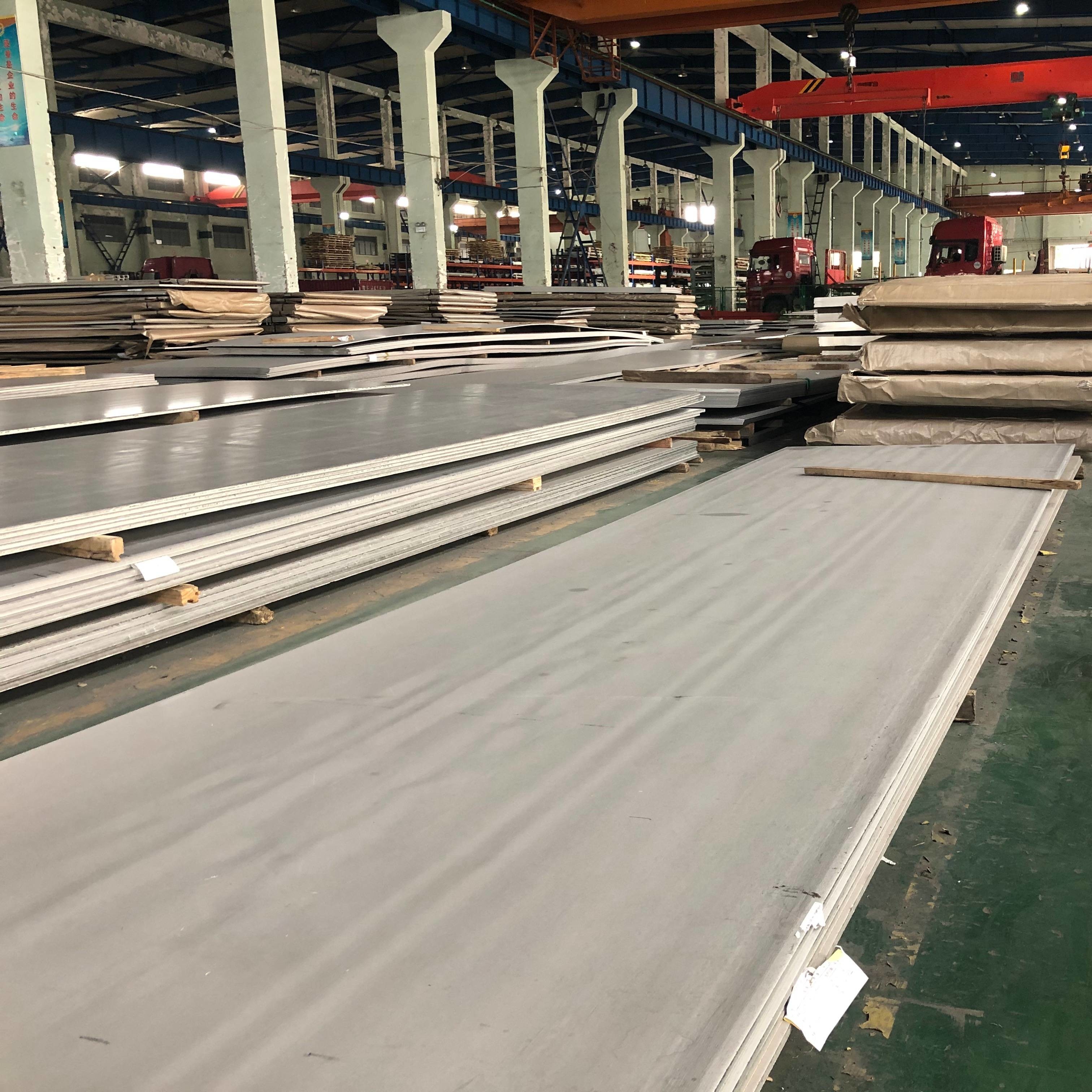

304L Square Rectangle Stainless Steel Plate Sheet For Chemical Construction 0





Packaging & Shipping

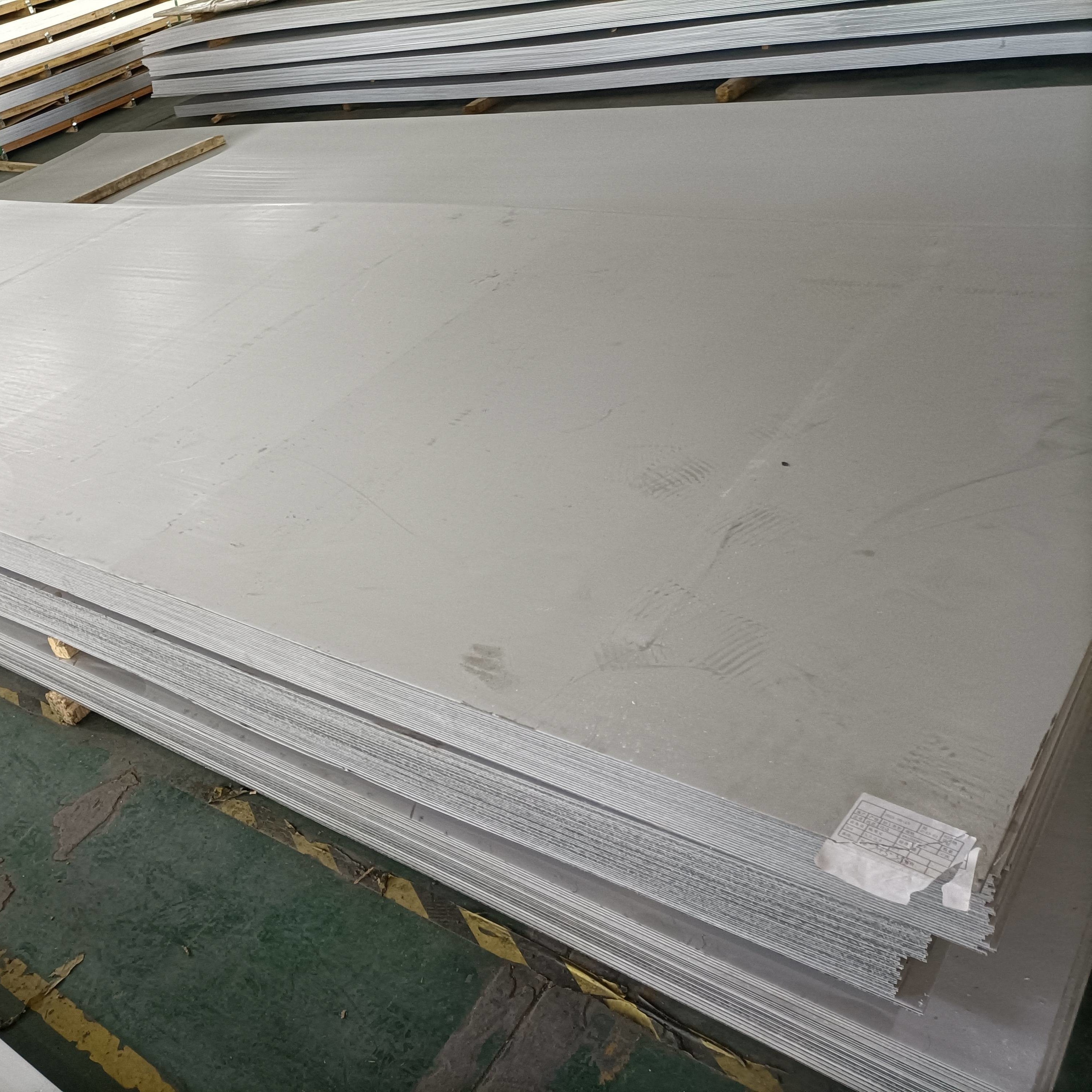

304L Square Rectangle Stainless Steel Plate Sheet For Chemical Construction 1



FAQ



Q1: ARE YOU FACTORY OR TRADER?
A1: Lichuang Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
