ASTM 4' x 8' 201 304 316L Brushed Stainless Steel Plate Hairline 14 16 20 Gauge

Place of Origin China
Brand Name Lichuang
Certification SGS ISO ROHS
Model Number 201 304 316 316L 309s 310s 904L
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details Standard Waterproof Package
Delivery Time 7-10 Days after confirming order
Payment Terms T/T, L/C, Western Union
Supply Ability 1000 TONS PER MONTH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Port Shanghai Application Food Vessel, Industry, Construction, Etc
Trade Terms FOB,CIF,CFR,EXW Length 2440mm-6000mm
Processing Service Bending, Welding, Decoiling, Punching, Cutting, Polishing Tolerance ±1%
Highlight

Brushed Stainless Steel Plate Hairline 14

,

20 Gauge 304 Stainless Steel Sheet

,

ASTM 4' x 8' Brushed Stainless Steel Plate

Leave a Message
Product Description

ASTM 4' x 8' 201 304 316L Hairline 14 16 20 Gauge 304 Stainless Steel Sheet



Product Description



Stainless steel wire drawing generally has several effects: straight silk, snow pattern, nylon grain. Straight silk lines are uninterrupted lines from top to bottom, generally using fixed drawing machine parts before and after movement. Snow pattern is the most popular one, consisting of a few regular dots, which can be achieved with worm sandpaper. Nylon lines are made up of lines of different lengths. Due to the soft texture of nylon wheels, uneven parts can be ground to reach nylon lines.



Item ASTM 4' x 8' 201 304 316L Hairline 14 16 20 Gauge 304 Stainless Steel Sheet
Grade 200 Series 300 Series 400Series 600 Series
Standard JIS, ASTM, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, etc
Length 1000-6000mm or as request
Thickness 0.15-6mm or as request
Width 24mm-2000mm or as request
Place of Origin China
  Jiangsu
Model Number 301L, S30815, 301, 304N, 310S, S32305, 410, 204C3, 316Ti
Type stainless steel plate
Application industrial, chemical, kitchen equipment
Tolerance ±1%
Processing Service Bending, Welding, Decoiling, Punching, Cutting
Steel Grade 301L, S30815, 301, 304N, 310S, S32305, 410, 204C3, 316Ti, 316L, 441, 316, L4, 420J1, 321, 410S, 410L, 436L, 443, LH, L1, S32304, 314, 347, 430, 309S, 304, 439, 204C2, 425M, 409L, 420J2, 436, 445, 304L, 405, 370, S32101, 904L, 444, 301LN, 305, 429, 304J1, 317L
Surface Finish 2B,BA NO.1 NO.2 NO.3 NO.4,8K HL PVC
Delivery Time 8-14 days
Payment Term 30%TT Advance + 70% Balance
Technique Cold/Hot rolled



Detailed Photo

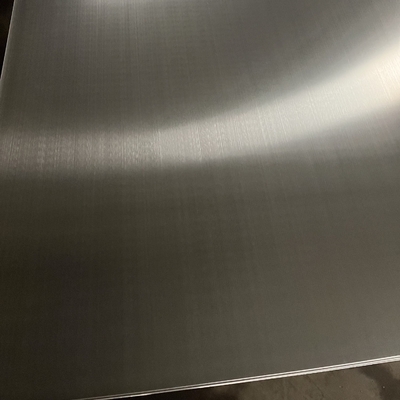

ASTM 4' x 8' 201 304 316L Brushed Stainless Steel Plate Hairline 14 16 20 Gauge 0



Chemical Composition



Grade C Si Mn P Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 3.5-5.5 16.0-18.0 -
202 ≤0.15 ≤1.0 7.5-10.0 ≤0.06 4.-6.0 17.0-19.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 6.0-8.0 16.0-18.0 -
302 ≤0.15 ≤1.0 ≤2.0 ≤0.035 8.0-10.0 17.0-19.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 19.0-22.0 24.0-26.0 -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 16.0-18.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 17.0-19.0 -
630 ≤0.07 ≤1.0 ≤1.0 ≤0.035 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 6.50-7.75 16.0-18.0 -
904L ≤2.0 ≤0.045 ≤1.0 ≤0.035 23.0-28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.80 ≤1.2 ≤0.035 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 0.19-0.22 0.24-0.26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 - 11.5-13.5 -
430 ≤0.12 ≤0.75 ≤1.0 ≤0.040 ≤0.60 16.0-18.0 -



Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elogation(%) Hardness (HRB)
201 ≥655 ≥310 ≥40 ≤100
202 ≥620 ≥260 ≥40 ≤100
304 ≥515 ≥205 ≥40 ≤92
304L ≥485 ≥170 ≥40 ≤88
316 ≥515 ≥205 ≥40 ≤95
316L ≥485 ≥170 ≥40 ≤95
321 ≥515 ≥205 ≥40 ≤95
409 ≥380 ≥205 ≥20 ≤80
409L ≥350 ≥185 ≥22 ≤80
430 ≥450 ≥205 ≥22 ≤80



Surface Finish

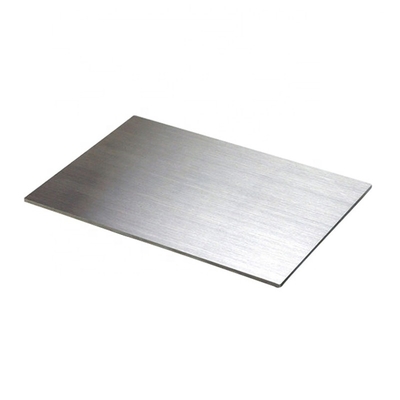

ASTM 4' x 8' 201 304 316L Brushed Stainless Steel Plate Hairline 14 16 20 Gauge 1





Packing & Delivery



ASTM 4' x 8' 201 304 316L Brushed Stainless Steel Plate Hairline 14 16 20 Gauge 2



FAQ



Q1: ARE YOU FACTORY OR TRADER?

A1: Lichuang Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.



Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?

A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.



Q3: HOW TO GET A SAMPLE?

A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.



Q4: HOW TO VISIT YOUR FACTORY?

A4: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.

If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
