Cold Rolled SUS430 DIN 1.4016 Brushed Stainless Steel Sheet NO.4 Hairline

  • Cold Rolled SUS430 DIN 1.4016 Brushed Stainless Steel Sheet NO.4 Hairline
  • Cold Rolled SUS430 DIN 1.4016 Brushed Stainless Steel Sheet NO.4 Hairline
Place of Origin China
Brand Name Lichuang
Certification SGS ISO ROHS
Model Number 430
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details Standard Waterproof Package
Delivery Time 7-10 Days after confirming order
Payment Terms T/T, L/C, Western Union
Supply Ability 1000 TONS PER MONTH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Thickness 1-100 Mm Width 1000mm,1219mm,1500mm,or Customized
Technique Cold Rolled /Hot Rolled Certifications Up To Order Quantity
Length 2000mm,2438mm,3000mm Or Customized Tolerance ±3%
High Light

DIN 1.4016 Brushed Stainless Steel Sheet

,

Cold Rolled ss sheet metal

,

SUS430 Brushed Stainless Steel Sheet
Leave a Message
Product Description

Cold Rolled SUS430 DIN 1.4016 Brushed Stainless Steel Sheet Plate NO.4 Hairline Surface Finish

 430 stainless steel is a general-purpose steel with good corrosion resistance, better thermal conductivity than austenite, smaller thermal expansion coefficient than austenite, heat-resistant fatigue, adding stabilizing element titanium, and good mechanical properties of welds.



Brand name Lichuang
Certification factory is vertifed by SGS. ISO or other product certification can be provided accordingly
Delivery time 3 -7 days
Manufacturing products mainly supply customer with stainless steel series products such as stainless steel sheet, stainless steel pipe, stainless steel profiles etc, also provide galvanized steel series products and carbon steel products etc for customers
Price term CIF CFR FOB EXW
Payment term T/T terms, 30% pre-payment, 70% balance see B/L copy; 100% L/C at sight
Stock available stock goods with standard size, can be delivered to customer area with fast speed
Standard JIS Aisi ASTM DIN EN bs
MOQ Customers can place order to us according to the required size's quantity
Steel outlook stainless steel sheet or plate. (coil or pipe etc can also be provided for customer)
Steel technique cold rolled / hot rolled
Grade 201 202 304 304J1 304L 321 316 316L 309S 310S 409L 410 420J1 420J2 430 444 etc
Surface finish 2B/No.4 brushed/8K/BA mirror finish/checkered plate etc can be manufactured according to customer needs
Size for one sheet W1000mm*L2000mm(3.2*6.5ft);
W1219mm*L2438mm(4*8ft);
W1500mm*L3000mm(5*10ft)
under cold rolled condition, 0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0 thickness, 4-6mm also be available. Other size can be cut according to customer requirements

W1250mm*L3000mm(4.1*10ft);
W1250mm*L6000mm(4.1*19.6ft);
W1500mm*L3000mm(5*10ft);
W1500mm*L6000mm(5*19.6ft);
W1800mm*L6000mm(5.9*19.6ft);
under hot rolled treatment, 3.0 4.0 5.0 6.0 8.0 10.0 12.0 14.0 16.0 thickness. 18-150mm also be available. Other size can be cut according to customer requirements


Chemical Composition


Grade C Si Mn P Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 3.5-5.5 16.0-18.0 -
202 ≤0.15 ≤1.0 7.5-10.0 ≤0.06 4.-6.0 17.0-19.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 6.0-8.0 16.0-18.0 -
302 ≤0.15 ≤1.0 ≤2.0 ≤0.035 8.0-10.0 17.0-19.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 19.0-22.0 24.0-26.0 -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 12.0-15.0 16.0-18.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 9.0-13.0 17.0-19.0 -
630 ≤0.07 ≤1.0 ≤1.0 ≤0.035 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 6.50-7.75 16.0-18.0 -
904L ≤2.0 ≤0.045 ≤1.0 ≤0.035 23.0-28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.80 ≤1.2 ≤0.035 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 0.19-0.22 0.24-0.26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 - 11.5-13.5 -
430 ≤0.12 ≤0.75 ≤1.0 ≤0.040 ≤0.60 16.0-18.0 -


Physical Properties


Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elogation(%) Hardness (HRB)
201 ≥655 ≥310 ≥40 ≤100
202 ≥620 ≥260 ≥40 ≤100
304 ≥515 ≥205 ≥40 ≤92
304L ≥485 ≥170 ≥40 ≤88
316 ≥515 ≥205 ≥40 ≤95
316L ≥485 ≥170 ≥40 ≤95
321 ≥515 ≥205 ≥40 ≤95
409 ≥380 ≥205 ≥20 ≤80
409L ≥350 ≥185 ≥22 ≤80
430 ≥450 ≥205 ≥22 ≤80


Product Photo

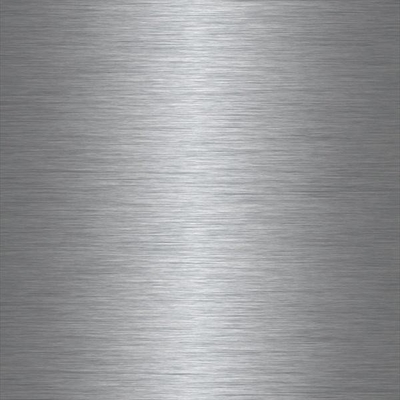

Cold Rolled SUS430 DIN 1.4016 Brushed Stainless Steel Sheet NO.4 Hairline 0

Surface Finish

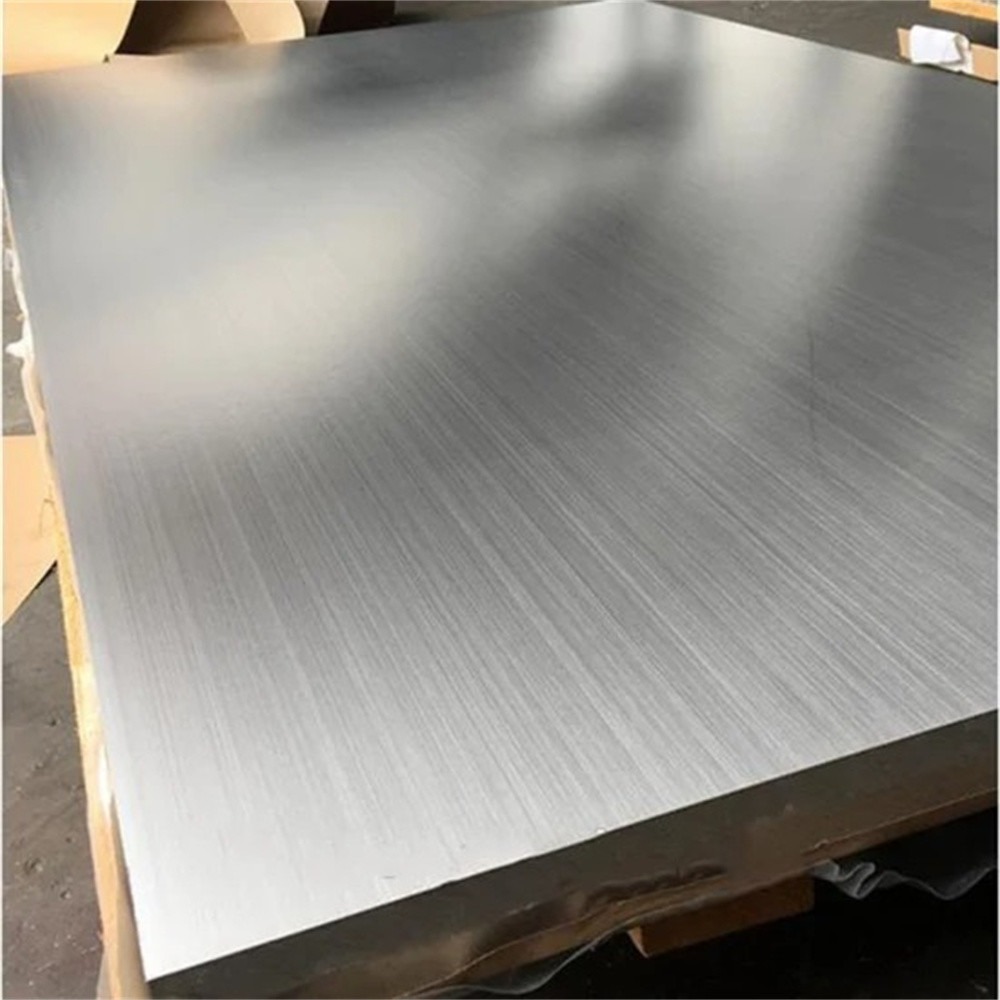

Cold Rolled SUS430 DIN 1.4016 Brushed Stainless Steel Sheet NO.4 Hairline 1


Packing & Delivery

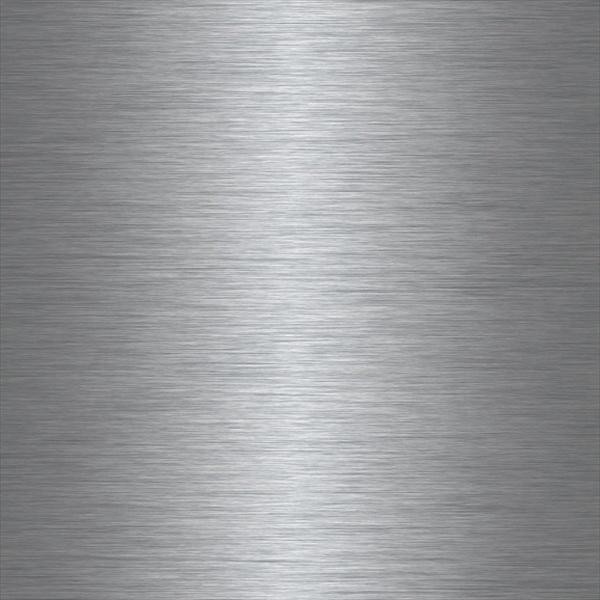

Cold Rolled SUS430 DIN 1.4016 Brushed Stainless Steel Sheet NO.4 Hairline 2

FAQ

Q1: ARE YOU FACTORY OR TRADER?
A1: Lichuang Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
