AISI 2205 Cold Rolled Stainless Steel Sheet Duplex Stainless Steel

  • AISI 2205 Cold Rolled Stainless Steel Sheet Duplex Stainless Steel
  • AISI 2205 Cold Rolled Stainless Steel Sheet Duplex Stainless Steel
  • AISI 2205 Cold Rolled Stainless Steel Sheet Duplex Stainless Steel
Place of Origin China
Brand Name Lichuang
Certification ISO, SGS, RoHS ,IBR
Model Number 2205 2507
Minimum Order Quantity 1000 Kg
Price Negotiable
Packaging Details Standard Seaworthy Package
Delivery Time 7-10 days
Payment Terms L/C, T/T
Supply Ability 50000 tons per year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Thickness 0.5mm-40.0mm Alloy Or Not Is Alloy
Invocing By Actual Weight Processing Service Punching, Cutting
MOQ 1 Ton Tolerance ±1%
Delivery Time 7-10 Days Shape Flat Plate
Highlight

Cold Rolled Stainless Steel Sheet

,

AISI 2205 duplex steel sheet

,

2507 Stainless Steel Sheet 40.0mm
Leave a Message
Product Description

AISI Cold Rolled 2205 Stainless Steel Sheet Duplex Stainless Steel



Product Description:



The yield strength of 2205 duplex stainless steel is more than twice that of ordinary austenitic stainless steel. This property allows designers to reduce weight when designing products, making this alloy more affordable than 316,317L. This alloy is particularly suitable for use in the -50°F/+600°F temperature range. Applications beyond this temperature range may also consider this alloy, but there are some limitations, especially when applied to welded structures.





Name


AISI Cold Rolled 2205 Stainless Steel Sheet Duplex Stainless Steel
Material Origin
TISCO, BAOSTEEL, JISCO, LISCO, BAOSTEEL, DINGXIN
Grade
Mainly201, 202, 304, 304L, 304H, 316, 316L,316Ti,2205, 330, 630, 660, 409L, 321, 310S, 410, 416, 410S, 430, 347H, 2Cr13, 3Cr13 etc
300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347
200series:201,202,202cu,204
400series:409,409L,410,420,430,431,439,440,441,444
Others:2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc
Duplex stainless steel:S22053,S25073,S22253,S31803,S32205,S32304
Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo
Technology
Hot Rolled
Length
100~12000 mm
Width
100~2000 mm
Thickness
Cold Roll:0.1~3 mm
Hot Roll:3~100 mm
Surface
BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, SB, NO.1

Leveling: improve flatness, esp. for items with high flatness request.

Skin-Pass: improve flatness, higher brightness
Other Choices
Cutting:Laser cutting, help the customer to cut the required size
Protection
1. Inter paper available
2. PVC protecting film available
Price Item
FOB,CIF,CFR,EXW ,.etc



Chemical Composition:



Chemical C Si Mn P S Cr Ni Mo N
Standard ≤0.03 ≤1.00 ≤2.00 ≤0.04 ≤0.03 21.0~24.0 4.5~6.5 2.5~3.5 0.08~0.2
Normally 0.025 0.6 1.5 0.026 0.001 22.5 5.8 3 0.16



Ys (Mpa) Ts (Mpa) El (%) Hv 2.0t/2B
≥ 450 ≥ 620 ≥ 25% ≥ 18 ≤ 320
500 670 35% 27 280

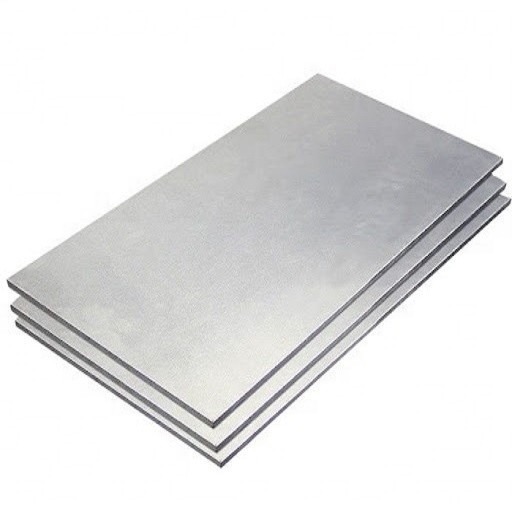

Detailed Photos:



AISI 2205 Cold Rolled Stainless Steel Sheet Duplex Stainless Steel 0





Surface Reference:





AISI 2205 Cold Rolled Stainless Steel Sheet Duplex Stainless Steel 1







Related Products:



AISI 2205 Cold Rolled Stainless Steel Sheet Duplex Stainless Steel 2

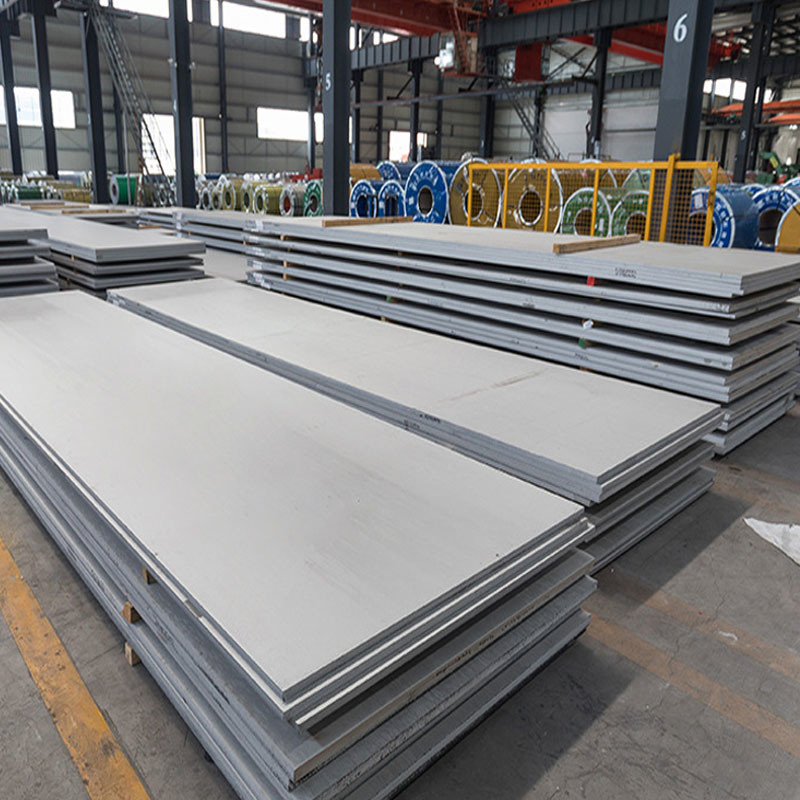

Packing & Shipping:

AISI 2205 Cold Rolled Stainless Steel Sheet Duplex Stainless Steel 3



FAQ:



Q1: ARE YOU FACTORY OR TRADER?
A1: Lichuang Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.

Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.

Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.

Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
